Well here goes another stab at it

Been silent for long while now, had some issues with the site being hacked and now that is taken care of, and really did not have much to say. Had some life changing events and now going to get back into leaving some more long winded passages about gear and photos. Photography is a passion never went away but always there to comfort and console. Maybe one day there will be more than a couple of readers, so who knows. Enjoy life and get out and take pictures.

West Point visits the Kuhn

On December 26, 2015 The Orange County Astronomers had some visitors from the West Point Military Academy. They stopped by to see the club’s 22inch telescope, known as the Kuhn Telescope. They were being hosted by Pat Knoll, Ralph Emerson, and Trey Mcgriff, who helped install a telescope setup at West Point. Here is a portrait of the group  beside the Kuhn Telescope. Dr. Paula Fekete is shown at the telescope eyepiece.

Some visitors from West Point Military Academy at the OCA Kuhn TelescopeAfter posing for this shot we took a VR panorama, click on the image below to view a larger version, you can also expand it to the full size of your screen. Click and drag in the scene to scroll around.  Even though it was a cold and very windy evening, we had a good time.

[pano file=”wp-visit/wp-visit.htm” preview=”wp-visit/WP_p1.jpg” ]












Aerial Panorama

A nice somewhat foggy morning with the sun rising and the early morning fog started to dissipate.

This panorama taken with my quadcopter taken at an altitude of 100′ above my local flying place, called Kite Hill. The uav was rotated and each frame was taken until the entire area was covered. Then the images were stitched to make the panorama, the sky was edited to fill in the upper part that the uav could not photograph. Click on the play icon and if you want to go full screen press the transparent icon in the upper right. You can scroll around in the panorama and look up an down. Enjoy.

[pano file="kitehill/kitehill.htm" preview="kitehill/khlp.jpg" width="900" height="500"]

Another year bites the dust…….

Well another year is in the process of slipping into the record books. Overall I think it was a good year, there is always room for improvement but in general things went ok. I am left filled with my usual feelings of not getting everything I wanted to get done, done. Oh well that is part of life’s rich pageant. I think having lots of tasks makes for a busy and fulfilling life, so I am not too worried that not everything was finished, they will be added to the next year’s agenda.

I am not usually one for lists or making “resolutions” but I try to set goals for myself, a subtle but real difference for me. Resolutions always seem like they are more trivial to me, easily broken and ignored.  Perhaps they should have more staying power and meaning but that is not what happens.  They seem easier to rationalize breaking.

Some of the things I want to accomplish in this coming new year,  and in no particular order. I need and want to revamp this website, I really need to add some images and replace a lot of them with better versions and better compositions. I also am going to try and write more articles and perhaps that will get down to a lot more commentary but the goal is to be a lot more active with the blog. I have not done a lot to promote it, mostly because I think the site still needs a lot of work. I also want to refine my image post processing, take my time to do what is best for my sense of vision. I want to refine my vision and be more deliberate with my art. Do more starscapes, and also do more photography in general, but then I always want to do more photography! It is a standard year to year wish, and pretty much goes without saying…..

I also want to make better and more productive use of my time. Time is fleeting and never seems to be a lot of it left at the end of the day, but I want to make it memorable and productive.

It is always easier to second guess and have perfect hindsight, but I am really lucky to have my family, friends, and a decent job. I am also especially lucky to have my wife. She is my companion, fellow photographer, friend, lover and confidant that gets me back on track and helps me stay focused.

And I will leave you with the last sunset for me this year and best wishes to all and hope that the New Year will bring much pleasure and happiness.

Thanks for reading. I will leave you with the last sunset for me in 2014…..



The last sunset for me in 2014



NGC 2264 – Cone Nebula and region

Here is an image that has taken me awhile to get around to finally processing. It is of NGC 2264 and the Cone Nebula region. Also known as the Christmas Tree cluster it is located in the constellation Monoceros, about 2,700 light years from Earth. This image was taken over 3 nights with a total exposure time of 9.5 hours through color filters. Of which 4.5 hours was for Luminance, and 100 minutes each for Red, Green, and Blue, exposure was 10 minutes long. The camera was a cooled CCD camera made by QSI, the QSI 583ws model. The telescope used was a Borg 125SD, 5 inch refractor at f6.4, for a focal length of about 800mm. The images were then calibrated and stacked together to make the final color image.

Enjoy.

NGC 2264 - Cone Nebula and region



More Colorado Fall Color

Some more eye candy from our trip to Colorado for fall colors. The San Juan mountains are such a wonderful place to see colors of fall. These are all taken by Barbara, my wife. She really does have a good eye and it makes it nice to have a travel companion on these trips. I am very lucky to have such a wonderful wife, friend and companion. We are looking forward to visiting here again, maybe next year.

Enjoy.



_DSF3826-web.jpg_DSF3843-web.jpg_DSF3886-web.jpg_DSF3918-web.jpg_DSF4005-web.jpg_DSF4052-web.jpg_DSF4057-web.jpg_DSF4060-web.jpg_DSF4073-web.jpg_DSF4133-web.jpg_DSF4195_6-2-web.jpg_DSF4521_2-web.jpg_DSF4584_5-web.jpg_DSF4673-web.jpg

Portable image backups

Just about any photographer at some point will travel to a location and photograph. That is what we do. Sometimes these locations are remote and sometimes they are just in the next town or countryside. Our captured photons are precious to us and before we can turn them into the works of art we saw when we captured the light, we need to bring them home safely. We carry extra cards, so that we do not run out of space and make sure we are able to capture that special moment. At some point we either start to run out of storage or we reach a point or have an experience that makes us realize we might want to back up and make a copies in case something happens. Something always happens, maybe not today or tomorrow but it will. Having backups is essential, especially when working for a client. Our bread and butter relies on us bringing home the goods. Many of us will travel with a laptop, then we are faced with the problem of once they are downloaded, we can format and reuse the memory card, but now we still only have one copy, or the other scenario is that we do not want to travel with a laptop and need someway of making copies to protect our precious images. Having redundant copies is essential, we do it at home, or if you aren’t you should be! Making backups is a critical function of being a digital photographer. We can carry small portable hard drives and hook them up to the laptop and make a copy of the folder. This is a good basic practice, some of us will carry two small drives and make two backups, safety first!

What about the other scenario, in which we do not want to carry a laptop or perhaps do not own one? A tablet will only hold a few images and certainly not a full days shooting or even close to multiple days, unless you are extremely frugal about capturing photons. I mean really, who only takes a dozen photographs? I am sure there are people out there but I know it would not work for me. I like to capture different angles, compositions, exposures etc. and soon the memory cards are getting full. It is not like the old days of film, where each shot was an expense, it still kind of is but not in the same sense. Shoot, chimp and check the histogram, doh not right, adjust and shoot again, that is the way in the digital age. I have found a couple of different devices that allow you to directly download a camera memory card and store them on a portable disk. They are very portable, recharge quite quickly and easily and are able to store a lot of data, good for a trip or while in the field. While they can be used standalone as the only backup on a trip, I use them as a secondary backup while out and about capturing images.  Another advantage is even if you are in the field, where it may not be possible to fire up the laptop you can still download and make a backup.

I have two portable backups, one I have had for about year or so and the other was just recently announced and acquired. The first is the Colorspace UDMA2 portable storage device and the other is the Western Digital WD My Passport Wireless. They are two different devices although they both provide portable storage. Why did I get two? Well they have different features, the Colorspace UDMA2 (UDMA2)  had a small lcd screen and and is accessed via some buttons below the screen, it has card slots for SD, Compact Flash cards. The WD Passport Wireless (Passport) has no screen, it has two buttons on the top and two leds on the front, and one SD card slot on the side. So the immediate advantage of the UDMA2 is the ability to have a menu screen and the ability to download CF and SD cards. The Passport is limited to only SD cards. I have cameras that use CF and SD but lately my main camera, the Fuji X-T1 uses the SD cards. Both units have WiFi capability, both have internal hard drives. Both units can be directly connected to computer via USB, the UDMA2 is USB2 only while the Passport supports USB3 speeds. My interest in the Passport was because of the higher speed when transferring data, although the USB specs are backwards compatible if it is truly USB3 speeds then it would make transferring data a lot faster. And when you have lots of data that can be a factor to consider.

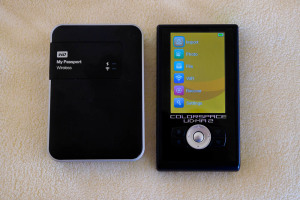

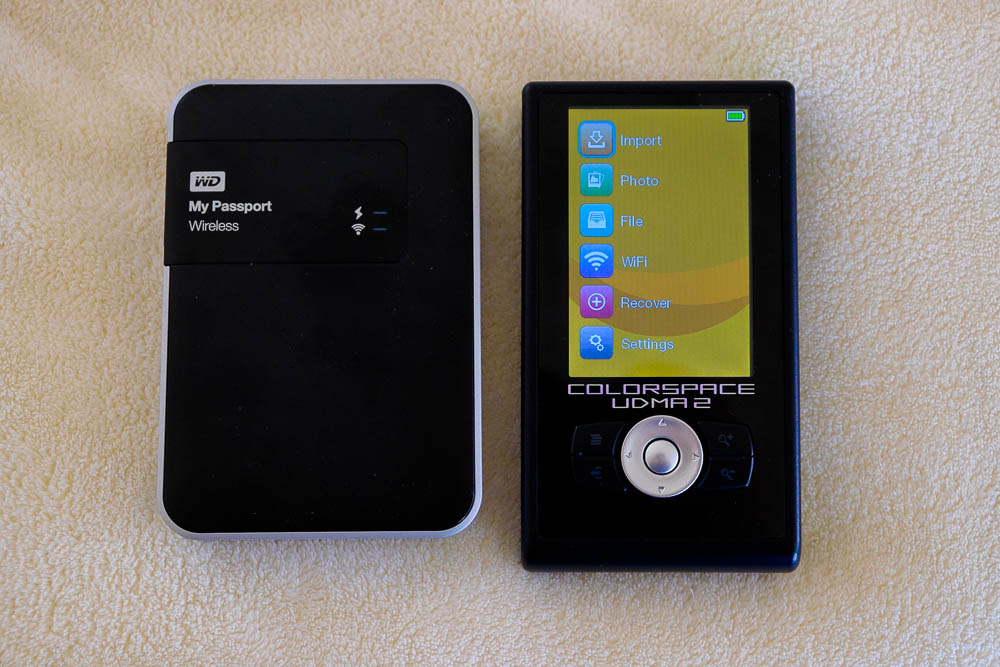

Two types of portable backup storage for images

Two types of portable backup storage for images

So how do they compare? Well the physically the UDMA2 is 5.25″x3″x1″ and the Passport is 5″x3.75″x1″ so they are physically similar in size. The Passport has built in wireless and the UDMA2 has a wireless dongle that fits into the mini USB port on the side. As mentioned the UDMA2 has SD, and CF slots, a power switch, two mini USB ports, two leds and power plug port along the sides of the unit. It has a 3.5″ tft lcs screen that has a resolution of 320×480, not real high resolution but it works for the menu system and you can see small thumbnails of the stored images. Both units can stream audio and video to wifi portable devices, this is not something I have used but it is there. The UDMA2 comes with a form fitting soft case with a belt loop and the Wifi dongle and a charger for the onboard battery. The Passport comes with just a USB3 cable, which is very short and wall wort charger, it also does not come with any printed manual, only a few pictures that really do not tell you how to do anything with the Passport.  The Passport has two buttons and a USB3 port on the top and single SD slot on the side and two small leds on the front. The Passport is available in two versions, one that is 1TB, the other is 2TB of storage. The UDMA2 is available diskless which means  the user needs to go out and get a standard 2.5″ laptop drive and install it themselves. This is what I did, I have a good fast laptop drive and installed it and followed the initialization instructions and it was up and running, a very simple process. They include instructions and the proper size screwdriver, installation is very straight forward.  The Passport is preinstalled but must be configured before the first use. Both units can be hooked up to a computer and used as a standard portable storage device, so you can also copy to and from a laptop or desktop. Both units have user upgradeable firmware.

In terms of usage they are similar and also very different. The Passport must be configured by the user before use. In order to do this, they user must connect to the device wirelessly. So either you have to use your laptop or a smartphone to access the device and then configure and setup the passwords and any configuration. The Passport may be setup to automatically check the card reader and start the download of the data. It has a very dangerous option to also delete the contents of the card after downloading, I recommend highly that you do not set this option. Also be sure to set an access password to the device, as soon as you turn on the device it will broadcast an SSID and unless you secure the device others can access it. To download a card, merely insert the card and wait. The wireless led will turn from blue to white and start flashing while it is downloading the data. It will download to a default directory and it will set the folder name to unique name that is generates. The user has no way of making a meaningful folder name for each download. When it is done downloading it will stop blinking and go back to blue, the card can be removed at that time. It will not make a second copy of that card, if you remove and reinsert the card it will look at it and decide it has already made a copy and will not download it again.  So no way to make a second copy to make sure it was downloaded. When done you can power down the drive. The Passport does not come with any kind of case.

The UDMA2 is a little more flexible in how it operates, you turn it on and it gives you a menu with items to choose from, like import a card, look at the photos on the drive, another to access the files on a file basis, make copies etc. Another menu item for the wireless. Another unique item is that it has the ability to recover images from a corrupted memory card or deleted memory card. And also has a menu to access setup and configurations.  To import images, stick a card in the appropriate slot, select the import menu item and it will check and make sure there is a card and download the card, by default it sets the folder names to card1, card2, etc. After it is done importing it allows you to look at the thumbnails of the image, it will display the basic EXIF information, like the exposure and iso and you can also have it show a histogram. Because it is using the embedded preview image and the screen is low resolution you will not be able to check focus but you can take a rough look and see the important details like exposure and the histogram. You can also browse images after they have been downloaded.

In terms of real world usage of these devices, a big concern is overall speed. I think a lot of people are too preoccupied how fast a device is, but in the case of downloading image from memory cards, I am all over anything with some semblance of speed. Here is where the big difference between these two device lies.  For testing purposes I took the same 20 raw files from my Sigma DP2Quattro camera and placed them on two cards, one was rated at 45mb/s and the other 95mb/s. Both were Sandisk SD cards, the slower card being a Sandisk Extreme, while the faster was a Sandisk Extreme Pro. I chose the Sigma files because the raw files are large, around 60mb each and this gave a total of 1.11gb of data to transfer. This turned out to be an interesting test, first there was no difference in download speed between the two cards, in other words, whether it was the 45mb/s card or the 95mb/s card, the download time was the same,  while using the built in card readers on the devices.  Also in use in the camera, with the Sigma it does not matter but with my Fuji cameras, speed matters.  If I use a fast card reader attached directly to my laptop or desktop, the card speed matters. Well that was a bit of diversion, the big difference between the two portable devices was significant. The Colorspace UDMA2 download the card in about 57 seconds, while the WD My Passport Wireless took 2 minutes and 21 seconds, yes 57 second vs 2:21 seconds. That is a big deal, especially when you are downloading a ton of data and multiple cards. On a recent trip to Colorado, my wife and I shot about 119GB of photographs, and taking 2.5x longer was an issue. While on that trip I downloaded the cards directly to the Colorspace UDMA2, then I downloaded them to my laptop, then I used the laptop USB3 direct connection to copy the daily folders over to the WD drive. For me using the SD card download on the Passport was too frustrating.

My other beef with WD My Passport Wireless is that the only way you can set it up is via the wireless interface. In other words if you connect to it via the USB3 cable all you can do is access the drive as a portable drive. You cannot access or configure the wireless setup or any of the options. My other issue with the Passport Wireless is that I had to download the manual and read it before I could set it up. By default automatic download from the SD card is disabled, and wifi security is disabled. They do provide the manual on the drive. The printed foldout  guide included was a pointless waste of paper. The included cable is very short, too short in fact, about 12″. A longer charging and interface cable is needed at least for my uses.

So in conclusion I think the Colorspace UDMA2 is the way to go for portable storage with the ability to download images from memory cards, it can deal with two types of cards, has the ability to review the thumbnails and to view exposure information and a histogram. You get to choose how much storage you want and you can easily upgrade it. Battery life on both units is reasonable but the Colorspace UDMA2 charges slower but it has a battery level indicator, it also comes with a nice soft case. The Passport charges quickly but only shows the battery level by a single led color, it will change color with less charge. The Passport is good as an attached portable drive and an SD card reader on a emergency basis. Get the Colorspace UDMA2, it is the most flexible and faster of the two. In my usage the Passport is just another portable drive to attach via usb.





Colorado Fall Color

Here are a few images from a fall color trip Barbara and I took at the beginning of October. Colorado is really magical for fall colors, just gorgeous, miles and miles of aspens turning color and fluttering in the breeze. The cool breezes and the hints of cooler weather in the future really make it special. We spent about a week in the San Juan moutains, enjoying the vistas and the colors. There are so many places to explore and discover that we hardly scratched the surface. The photographs here are from the area just south of Telluride a storm system was approaching and we were on our way out of the area. A more mundane life was pulling us back to the hustle and bustle of day to day living. Enjoy.

I will continue to add more posts with more images as I get them posted.  On a technical note I only brought my mirrorless cameras, Barbara and I were shooting Fujifilm cameras, a X-T1 and X-E2. I also had my Sigma DP2Q and DP3m, but in this post these are all from me and the X-T1. Traveling with these smaller cameras is really a pleasure.



_DSF3824-web.jpg_DSF3862-web.jpg_DSF3875-web.jpg_DSF3917_8-web.jpg_DSF3926_7-web.jpg_DSF4035-web.jpg_DSF4069-web.jpg

Sigma DP2 Quattro – High resolution niche camera

Around the end of June I got an email from Sigma, the lens and camera manufacturer, announcing their “Try Before You Buy” program for the DP2 Quattro camera. This camera was announced earlier this year and it is a predecessor to their DP Merrill line of compact cameras. These cameras are based on the Foveon sensor which records color for each pixel instead of using a Bayer matrix and interpolating the color. This leads to an increase in resolution, how you classify that is open for some debate. The DP2Q uses a new version of their innovative sensor, in that it records a full resolution luminance and blue chrominance and reduced resolution red and green layer. It still records color for each pixel.  They have a lot more information on their website.   One of the advantages is that  there are no filters in front of the sensor, and one of the disadvantages is the sensor records each color in a different layer, the deeper the layer the lower the intensity of light as it penetrates deeper, and this can lead to more apparent noise. So the sensors do not do real well in high ISO, dim light situations. The benefit of these sensors, is they can deliver a ton of resolution in a small and compact package.

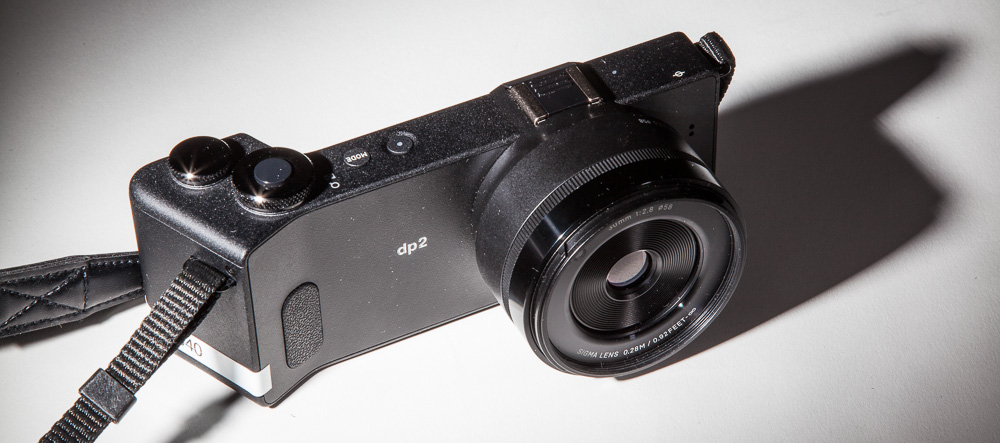

Sigma DP2 Quattro

Sigma DP2 Quattro

The camera is not your normal looking camera, it is long and thin with an angular grip on the right hand side, which has the shutter button and main controls and also houses the battery.  The lens is a fixed lens, 30mm f2.8 and has the equivalent field of view of a 45mm lens on a full frame camera, the crop factor is 1.5x.  The grip is very angular and I found it could be uncomfortable to hold in one hand, I suppose you could get used to it but it really lends itself to being held in both hands. There is hot shoe on the top centered over the lens as well as a standard tripod screw socket on the bottom, centered approximately at the centerline of the lens and at the sensor plane. This will at least make it easier for doing panoramas. The memory card is located on the left side of the camera and has a rubber type cover that is a little awkward to remove each time you want to access the memory card. That type of cover is usually used for covering ports that don’t get used often. If you have short fingernails it can be problematic to get the cover off. That was not the best choice. The battery loads from the bottom in the grip area.  The top of the camera has a small button for turning the power on and off, a mode button for setting the the various modes, like program, aperture priority, shutter priority or manual mode. There are two rotary switches on the top, the front most one has the shutter button on it and rotating controls one of the settings depending on the mode. The rear most rotary switch controls the exposure compensation or aperture in manual mode. On the back there is a nice 3 inch lcd screen. It is not moveable or tiltable, which is really a shame.  The four buttons to the right of the lcd control various functions and includes the menu button. On the rear of the grip area is a button surrounded by a 4 way toggle. It is a directional switch as well as turning the focus mode from manual to autofocus and also for selecting the focus point. The lens also has a small, thin ring that can be used for manual focusing, it is fly by wire type focusing. The hood is a little large but usable and uses a bayonet mount to attach to the front of the lens. The lens is also threaded for 58mm filters.

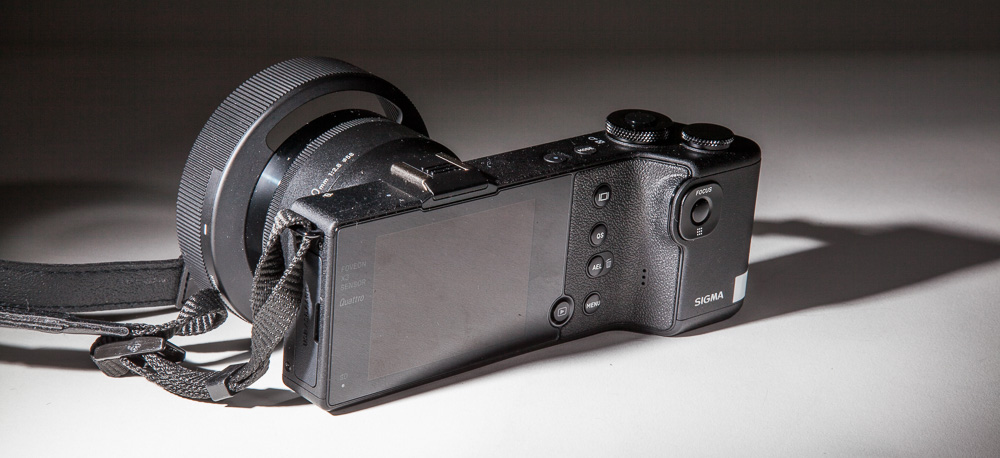

Sigma DP2 Quattro rear view

Sigma DP2 Quattro rear view

Field Testing

As I mentioned earlier the grip is not very ergonomic, at least for my hands it put some pressure at points that made it uncomfortable to hold for a long time period in one hand. Using two hands was a lot better, balanced quite well.  The camera will focus quite fast if the light is decent, seems to hunt a bit in low light. There are only 9 focus points,  8 points centered around the center point. These are easily accessed, pressing down on the 4 way button and then selecting the point you want and pressing the center button to return from the selection. The drawback is that there are only 9 points. I have been spoiled with DSLR’s and my Fuji X-cameras and I am used to having a lot more focus points. When manually focusing you can press the center button on the 4 way to zoom in and check focus at the selected focus point, this is really nice. Manual focus is “fly by wire” and responsive. There are two zoom factors, but you need to press the center button to exit zoom mode. You can autofocus and then adjust the focus manually, without having to switch modes. When you select manual focus a small distance scale appears near the bottom of the lcd screen. The distances marked are very coarse and not very useful, smaller divisions would have been more helpful.

Once you press the shutter it can take a few seconds before the camera will respond again, even though there is a 7 shot buffer, it is not a fast shooting camera at all. The raw files are huge and do take some time to write out. Having a faster memory card does not help, it still takes a very long time in modern camera times. The camera is a slow and deliberate imaging device that does not lend itself to shotgunning and rapid fire.  Raw files were in the 50-65mb range, depending on details, so there is a lot of information being written out to the files. The camera can record jpg, raw and jpg+raw. The jpgs looked nice but for this camera raw is the way to go.

The 3″ lcd on the back of the camera is nice until you get out in the bright sun, then it is very hard to see anything on it, let alone try to focus and frame. This is not that unusual for cameras that rely solely on the rear lcd. Sigma does make an optical viewfinder that slides into the flash hotshoe. This will give you an idea of framing but any exposure or focus information will have to be from the lcd. Sigma did not include one of the viewfinders for the trial. I really wish they had, and I think it will be a necessary item. On the screen you can also turn on a level and tilt indicator, which takes up a fair amount of the image area and can be disabled easily, but it is useful for initial setup for a shot. Also a live histogram can be enabled. I used this a lot, however, even if the live histogram was not showing any blown highlights I was getting blown highlights. So I ended up dialing in exposure compensation of as much as a stop in bright contrasty light. I did not see anyway to enable the histogram or a blown highlight indicator when reviewing images on the lcd, I think this is really an essential feature that has been left out of the camera. The camera also has the ability to bracket shots, which is nice and it is selectable in 1/3 stop increments, up to +/- 3 stops. The down side of bracketing is that it can take awhile to write out all three shots and the camera is not very responsive.

Battery life was reasonable and I seemed to get around 250-300 shots on a battery,  however the camera does get noticeably warm. In fact it can get quite warm. I noticed the warmth on the left side where the SD card is located and also on the right side in the flat area next to the lens. It is almost if the processor inside the camera is using the case as a heat sink. On a warm SoCal day it got quite hot, hot enough that the “overheating” icon started flashing on the lcd. This is the first camera that I have that had an overheating icon, let alone having it come on. It did come on several times on a hot day, so I shut the camera off and sat in the shade and let it cool down. It would cool down in about 5 minutes or so with the camera off and then back to shooting.

Raw Conversion Software

Barrel cactus

Barrel cactus shot at ISO 100 1/30 @ f16

Raw conversion is another possible issue for some users. The raw format from this camera is only supported by Sigma, the manufacturer. So you will not be able to use Adobe Lightroom or Capture One to process your raw files. You must use Sigma Photo Pro. This software is easily downloaded from the Sigma site and they have versions for PC and Mac. The software seems to have most processing features you might want to use. However it is a very slow piece of software, loading images takes some time, as well as any time you move a slider, it will take 10 seconds or so to update the image. While I realize that there is a lot of data, in today’s world that is slow and can be frustrating when you catch your self not allowing time for the update to catch up. It is not real time adjusting.  Also when you load an image it does not reset any of the previous settings that you use, so you need to go and manually resets each group of sliders by pressing on the respective reset buttons. Sigma Photo Pro, or SPP, does have a image browser so you can look at thumbnails and then click on the image to edit, and it will use two monitors if you have a dual monitor setup. One thing I found annoying is that the thumbnails, even in the “large” setting are too small to really see any details. I found that Breezebrowser allowed me to browse the thumbnails and see a larger version so I used that to browse the images to select the ones that I wanted to bring into the editor. The SPP also has a few bugs, at least the current version that I tried during this period. I found that if I set the box to save the image settings while I was saving the file out as tif or jpg, when I went back to edit another image it would crash on loading the image. This was solved by not checking that box, also it seemed that it never saved the image settings anyways, so kind of a moot point.  Another thing that was missing was any kind of curves, all adjustments were via sliders. I also found that the sharpening slider quickly resulted in artifacts so I would end up doing any sharpening in a different software. Another “feature” that is annoying, when you start up SPP, it goes out and looks at each and every drive on your system, so if you have some network drives that are “sleeping”, it wakes them up and accesses them. So you sit there staring at and empty framework while all the drives spin up, it does this even if it has never accessed the drive before. The slowness of the software was consist on all the computers I tried it on, originally I was using my laptop and thought switching to the much more powerful desktop would speed things up. Turns out that was not the case at all.

Image Quality

_SDI0685-Edit1-corner crop-web

Corner crop of the cactus image, 100% crop from the upper right hand corner

As with any camera the overall image quality is what really matters. After all a camera is just a tool. The size of the image from the DP2Q can be a matter of discussion, the RAW file, straight out of the camera is 5424 x 3616, which is a decent size image. You can save it, after processing in SPP, at a super high setting of  7680 x 5120 in both jpg and tif or you can save it in the default size of 5424 x 2616 or even a half size or double size image. I only save at default size and super sized, I saw no real benefit in the half size or double size images. You can also select 8bit or 16bt for the tif and you can also select the color space.  The larger size is very hard to tell from the smaller size. There seems to be a little resolution loss but I did not take enough samples to be completely sure. The larger size is certainly getting closer towards the size of medium format. Since there are no filters at all in front of the sensor elements the resolution and sharpness is quite amazing. That is if the photographer has done their job, any kind of camera shake or instability can affect image quality. So this is one of those cameras that best practices results in better images. In general I found colors to be bright and vivid straight out the processing software, white balance was pretty accurate most of the time, but in some conditions and with people the color balance seemed a little off to me. I am very used to having the white balance nailed, especially with my Fujifilm cameras and with the Canon dslr. If you look closely at the crop of the cactus image to the right, you can see a ton of detail in this image. The crop is from the upper right corner of the previous cactus image. There is no distortion that I could see with this built in lens, optical quality is excellent. The details are really amazing, the crop is at 100% and no additional sharpening was used. Notice the fine details in the fuzz between the spines and the rings on the spines. The bokeh at wide open apertures was quite pleasing and having the f2.8 was nice.

 Final Thoughts

Well it was too bad that I had to ship the camera back to Sigma, I had it in hand for less than a week. I wish I had some more time with the camera to really put it through its paces. This was the first Sigma camera that I had used, I have used many of their lenses. That being said I had read about and researched their DP Merrill series of cameras, the one that this DP2Q is replacing, and I often lusted after one. I did understand the shortcomings of those cameras but the images were compelling with lots of detail. This new generation is along those same lines. There are good things, and some not so good things about this camera.

The camera is capable of taking amazing images with fantastic detail, if the photograper is careful and uses best practices. That means careful focusing, stable platform, watching shutter and aperture, taking the time to get things right. It is not a point and shoot. It really needs to be shot at low ISO ranges, the camera is capable of 6400 but I think a more realistic limit for color is about 800, and you can do a lot with black and white images up to ISO 1600, beyond that it is not that great. Image quality degrades, lots of noise and blotching. So keep it low ISO.  I put a Arca swiss type release plate on the camera and used a tripod as much as I possibly could, this slowed things down and made it deliberate, which is what this camera needs. It is slow, in a relative fashion compared to other cameras, but not really that slow compared to cameras a few year ago, and those had much lower resolutions. Watching exposure is a must and sometimes bracketing is needed to assure that you captured the image. The controls are well laid out and easy to change and are well thought out, just the grip leaves a lot to be desired. I did try the flash that was sent with the camera, it worked ok and seemed to do an adequate job, not something I would use much with a camera like this, but if you need a quick shot, it is worth it. The software is slow, no matter what machine you run it on, it takes some time to get used to it. The best thing to do with the software is adjust exposure, white balance, lower sharpening and output a 16 bit tif and edit in some other software with more features.

What it really needed was some sort of electronic or mechanical shutter release, there might be one, but unless it uses the USB port I did not see anyplace to attach it. That would be nice to have, especially when using a tripod. Another nice thing to have would be an optional Electronic View Finder, but I don’t see that one happening. A tilting lcd screen is also something I really wish they had on this camera, the might mitigate some of the bright light usage issues and also make it easier for tripod use. I am not sure how well their optical finder works, as it was not included.

So in conclusion, it is capable of amazing images if used with care and some tolerance of quirks. In other words a nice camera that will have an appeal for those who can appreciate a niche camera. If you are looking for a snappy point and shoot to chase the cat around the house, this is not the camera for you. If you are looking for a camera that will challenge you to get the best images you can get, then you have room in your bag of tools for this camera.

I still have a backlog of images to process but here are few more samples. Click on any of the images to see a larger version.  Feel free to contact me with any questions, and if you are with Sigma and want a tester…….. be happy to help. Thanks for reading.

UPDATE: 30 July 2014

I just wanted to clarify a few things. In my look at the DP2 Quattro I was wrong about the blinking highlights, those can be viewed during the review process, I read about it in the manual, when I get the camera I will be sure to enable it. The other thing is that Sigma is making a release for this camera, it plugs into the USB port and is relatively cheap to purchase, it is a simple button with a hold function

Sigma has also announced that within the next two weeks there will be a camera firmware update and an update to SPP, hopefully that will clear up a few of the bugs.



_SDI0010-Edit1-web.jpg_SDI0032-web.jpg_SDI0105-a-web.jpg_SDI0203-a-web.jpg_SDI0231-web.jpg_SDI0468-web_SNSHDR_3-web.jpg_SDI0473_4_5_tonemapped-web.jpg_SDI0483-web.jpg_SDI0604-web.jpg_SDI0709-web.jpg



Update on the Rokinon 12mm f2 NCS CS lens

A brief update on the Rokinon 12mm lens that I previously reviewed. I did get another copy of the lens and color cast that I saw in the previous lens was gone. So that is great news. I have shot with the lens some more including getting out and shooting under the stars. One of the main reasons I was interested in this lens was it might make a good lens for nightscapes. I have to say that it really does make for a good lens for night shots. The lens is still a bit soft at f2, but that is to be expected with a lens that is this wide. It is not to say that it is unusable, but it does perform better stopped down. If there is nothing close to the lens and most items are at infinity focus then it is hard to see the softness.  For most instances this not a problem and it is a wonderfully fast lens. I found that stopping down to f2.4 or f2.8 resulted in a general improvement, and by f4 is pretty good all over. That being said for quick nightscapes the faster aspects can be beneficial, and it will show less trailing. Even though this is a wide lens, with the crop factor it does give the field of view of an 18mm lens so that means that stars will start to show trailing before 30seconds, depending on where you point the camera.

This shot was from a quick trip out to Joshua Tree National Park, taken with a Fuji X-T1 and the Rokinon 12mm at f2.0 and ISO 3200, single exposure of 30 seconds.

Milky Way over Joshua Tree NP

Milky Way over Joshua Tree NP

The lens is a good deal considering the price and the performance. The downsides are the full manual focus and aperture and the lack of details being recorded in the EXIF of the camera. The Fuji does allow the setting the focal length so that is recorded, however the aperture used is not recorded. The lens hood also leaves something to be desired. It is really loose fitting and will sort of snap into place but there is a lot of play and I have found that it has come off sometimes in the camera bag, poor design, in my opinion. It is a functional hood for the wide angle lens but it could be better. The positives pretty outweigh the negatives. There is little chromatic aberration and little coma in the corners. I do expect some in a lens this wide but it is very negligible. Color and contrast are quite good. It has well corrected optics, much better than one would assume with a lens of this price point. It is also compact and relatively small for a wide angle lens. Focus ring and aperture ring are smooth and have a good feel to them. The aperture ring is detented at half f-stops from f2-f22. The lens feels solid and well constructed and is not weather resistant. The front is threaded for 67mm filters, which is nice.

I would recommend this lens, especially for the price point.  I would give the Fuji 14mm f2.8 lens the edge, it has the full autofocus, as well as manual focus and the ability to have auto aperture, but the Fuji is substantially more money. The Rokinon is a bargain and for me a nice lens to have in the bag and one that will get used, for nightscapes and landscapes. I will still keep my Fuji 14mm. The Fuji is a bit better corrected optically but the Rokinon does pretty well. The extra 2mm of the Rokinon does make a difference. I was also interested in the Rokinon 10mm but it is twice the weight of the 12mm and is not as appealing. The 12mm was designed for mirrorless cameras and therefore the size and weight are scaled accordingly, while the Rokinon 10mm appears to be a verison of their DSLR lens with a Fuji X-mount on the end, not as appealing. I am happy enough with this Rokinon that I do not feel the need to compare it to the Zeiss 12mm lens for Fuji.  For ultra wide I will stick with the Fuji 10-24mm f4.
